462 - brake piping (chassis) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec

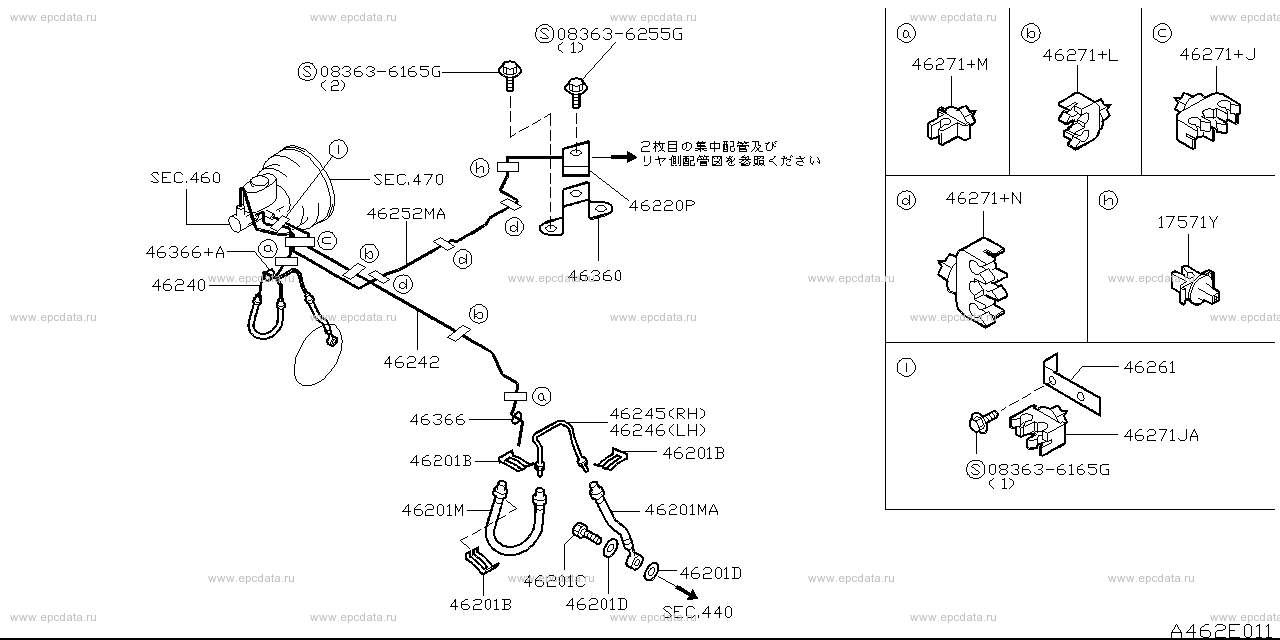

W.2WD.CD20T	05.1994 - 01.1997	ＡＢＳ無し フロント パイピング

Open full screen picture Up to the top

083636165G 083636255G 17571Y - clip 46201B - spring, lock brake hose 46201C - bolt, union front brake hose 46201D - gasket, brake hose 46201M - hose assembly, brake front 46201MA - hose assembly, brake front 46220P - connector, brake tube 46240 - tube assembly, brake front RH 46242 - tube assembly, brake front LH 46245 - tube assembly, front brake RH 46246 - tube assembly, front brake LH 46252MA - tube assembly, brake rear master cylinder 46261 - bracket, brake tube 46271+J - clip, tube brake 46271+L - clip, tube brake 46271+M - clip, tube brake 46271+N - clip, tube brake 46271JA - insulator 46360 - bracket, brake connector 46366 - grommet 46366+A - grommet

---

Applies for models	Manufacture period	Spec
W.2WD.CD20T	05.1994 - 01.1997	ＡＢＳ無し リヤ パイピング

Open full screen picture Up to the top

081108161A 083636255G 089151381A 17571Y - clip 46210 - hose assembly, brake rear 46211B - spring, lock brake hose 46220P - connector, brake tube 46271+N - clip, tube brake 46271+P - clip, tube brake 46271+Q - clip, tube brake 46284+A - tube assembly, brake rear 46286N - tube assembly, brake rear 46287M - tube assembly, brake rear 46289+C - clamp 46290 - tube assembly, rear brake RH 46310 - tube assembly, rear brake LH 46364 - connector, brake tube 55286X - bracket, brake hose rear RH 55287X - bracket, brake hose rear LH

---

Applies for models	Manufacture period	Spec

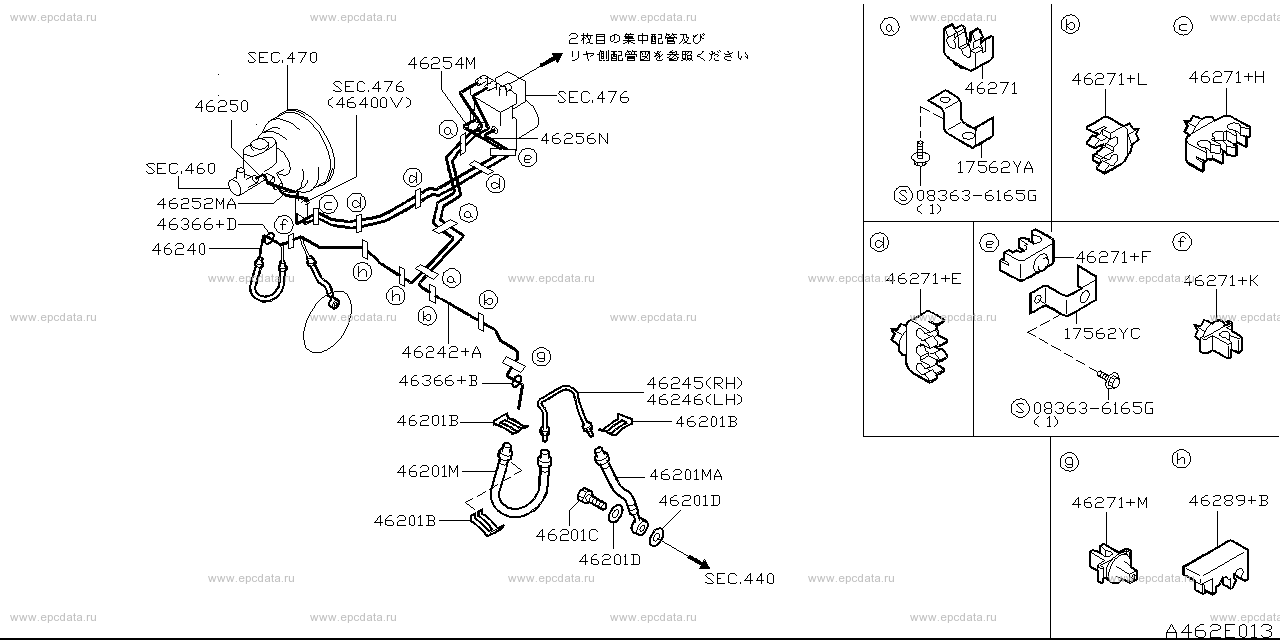

W.2WD.CD20T	05.1994 - 01.1997	ＡＢＳ付き フロント パイピング

Open full screen picture Up to the top

083636165G 17562YA - clip 17562YC - clip 46201B - spring, lock brake hose 46201C - bolt, union front brake hose 46201D - gasket, brake hose 46201M - hose assembly, brake front 46201MA - hose assembly, brake front 46240 - tube assembly, brake front RH 46242+A - tube assembly, brake front LH 46245 - tube assembly, front brake RH 46246 - tube assembly, front brake LH 46250 - tube assembly, brake front master cylinder 46252MA - tube assembly, brake rear master cylinder 46254M - tube assembly, brake front CONN TO ACT 46256N - tube assembly, brake rear CONN to actuator 46271 - clip, tube brake 46271+E - clip, tube brake 46271+F - clip, tube brake 46271+H - clip, tube brake 46271+K - clip, tube brake 46271+L - clip, tube brake 46271+M - clip, tube brake 46289+B - clamp 46366+B - grommet 46366+D - grommet

---

Applies for models	Manufacture period	Spec

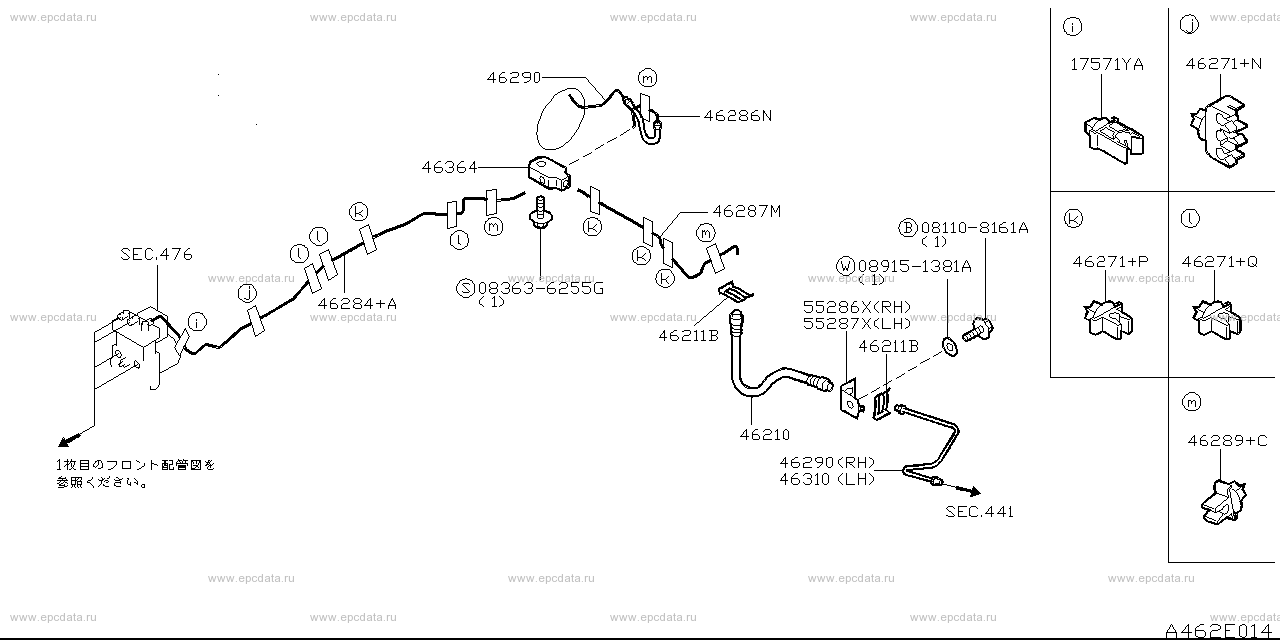

W.2WD.CD20T	05.1994 - 01.1997	ＡＢＳ付き リヤ パイピング

Open full screen picture Up to the top

081108161A 083636255G 089151381A 17571YA - clip 46210 - hose assembly, brake rear 46211B - spring, lock brake hose 46271+N - clip, tube brake 46271+P - clip, tube brake 46271+Q - clip, tube brake 46284+A - tube assembly, brake rear 46286N - tube assembly, brake rear 46287M - tube assembly, brake rear 46289+C - clamp 46290 - tube assembly, rear brake RH 46310 - tube assembly, rear brake LH 46364 - connector, brake tube 55286X - bracket, brake hose rear RH 55287X - bracket, brake hose rear LH

---

Applies for models	Manufacture period	Spec

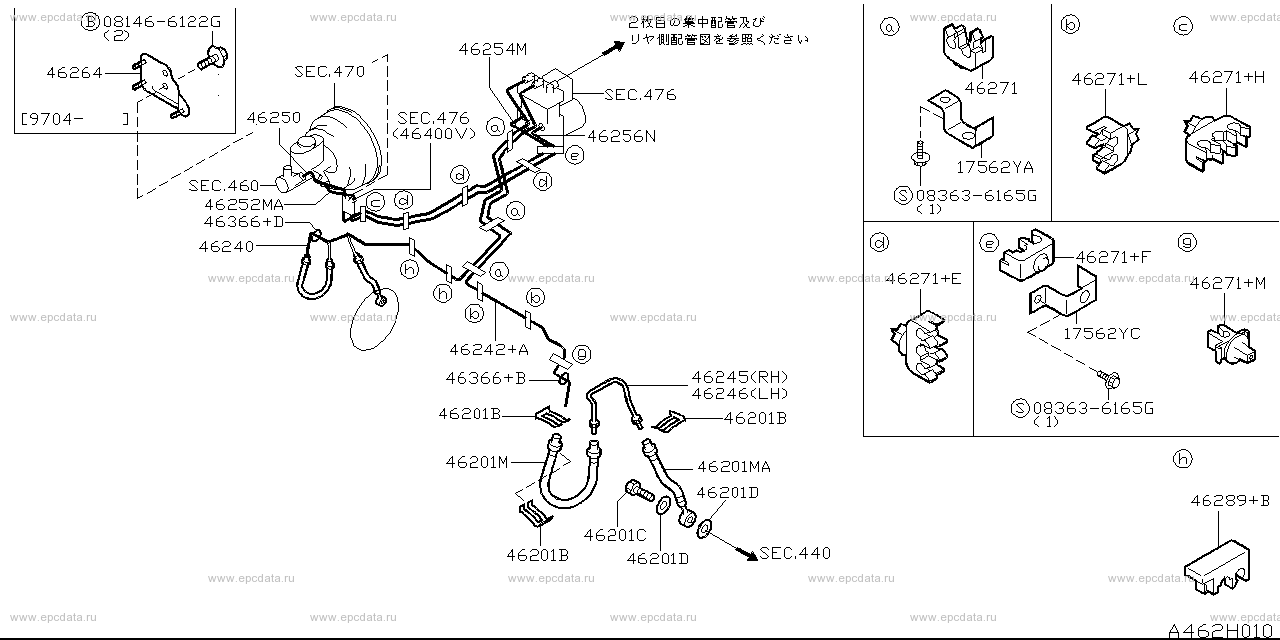

W.2WD.CD20ET	01.1997 - 01.1998	フロント パイピング
W.2WD.CD20ET	01.1998 - ...	フロント パイピング

Open full screen picture Up to the top

081466122G 083636165G 17562YA - clip 17562YC - clip 46201B - spring, lock brake hose 46201C - bolt, union front brake hose 46201D - gasket, brake hose 46201M - hose assembly, brake front 46201MA - hose assembly, brake front 46240 - tube assembly, brake front RH 46242+A - tube assembly, brake front LH 46245 - tube assembly, front brake RH 46246 - tube assembly, front brake LH 46250 - tube assembly, brake front master cylinder 46252MA - tube assembly, brake rear master cylinder 46254M - tube assembly, brake front CONN TO ACT 46256N - tube assembly, brake rear CONN to actuator 46264 - bracket, brake connector 46271 - clip, tube brake 46271+E - clip, tube brake 46271+F - clip, tube brake 46271+H - clip, tube brake 46271+L - clip, tube brake 46271+M - clip, tube brake 46289+B - clamp 46366+B - grommet 46366+D - grommet

---

Applies for models	Manufacture period	Spec

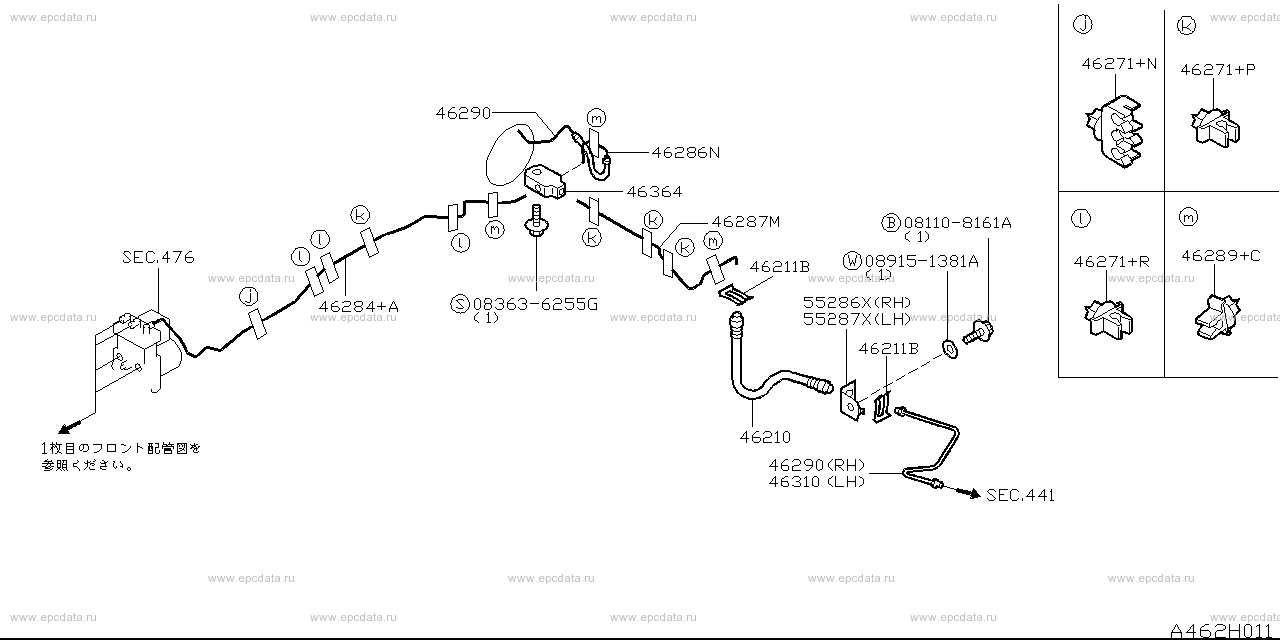

W.2WD.CD20ET	01.1997 - 01.1998	リヤ パイピング
W.2WD.CD20ET	01.1998 - ...	リヤ パイピング

Open full screen picture Up to the top

081108161A 083636255G 089151381A 46210 - hose assembly, brake rear 46211B - spring, lock brake hose 46271+N - clip, tube brake 46271+P - clip, tube brake 46271+R - clip, tube brake 46284+A - tube assembly, brake rear 46286N - tube assembly, brake rear 46287M - tube assembly, brake rear 46289+C - clamp 46290 - tube assembly, rear brake RH 46310 - tube assembly, rear brake LH 46364 - connector, brake tube 55286X - bracket, brake hose rear RH 55287X - bracket, brake hose rear LH

Vanette Serena KVC23
